Реле времени DIN ЖК 10 режимов 24..220 В (Код: 20004071)

Хиты: 40







MCB-10 time relay is specifically designed for controlling the time and incoming data and can be used in industry, residential,factory facilities.

Device Display and Buttons

① It indicates the remaining time.
② Set time: It shows the time set by the user.
③ Up / Down (▲/▼): Up/Down (▲)(▼): lt shows that the counting starts from set time or continues until the set time. It blinks during the set time while the device isrunning.
④ Function: lt shows the device operating function.
⑤ Time Unit: lt shows time unit which is set time.
⑥ LED Indication: It shows relay On or Off status.
⑦ Button
(SET)(ADJ):Press and hold for 3 seconds at the same time to enterthe settings menu.
(SET): lt confirms parameters in function selection menu and time adjustment.
(ADJ): lt adjusts parameters in function selection menu and time adjustmentmenu.

Function Button(Fn)

-A- ON Delay
After the device is powered on, the delay starts, the M Led flashes during timing, and the relay is output after the delay ends, relay Led is on and the M Led is on.
Re-execution requires power-off reset.

-b- OFF Delay
After the device is powered on, Relay immediately output, relay Led on, delay starts, the M Led flashes during timing, and the relay is stop output after the delay ends, relay Led off and the M Led is on.
Re-execution requires power-off reset.

-C- Control ON Delay
After the device is powered on, when the T signal is turned on, the delay starts, the M Led flashes, and the relay outputs after the end, relay Led on and the M Led is on.
If the T signal is turned off during the delay process, the delay will be stopped and the delayed will be cleared.

-d- Control OFF Delay
After the device is powered on, when the T signal is turned on, relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on.
If the T signal is turned off during the delay process, the delay will be stopped and the delayed will be cleared.

-E- Single Shot Leading Edge With Control Input
After the device is powered on, when the T signal is turned on, relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on.
If the T signal is turned off during the delay, it will not interruption of timing.

-F- Single Shot Trailing Edge With Control Input
After the device is powered on, when the T signal is turned on, continue waiting, When the T signal is detected to be turned off relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on.
If the T signal is turned off during the delay, it will not interruption of timing.

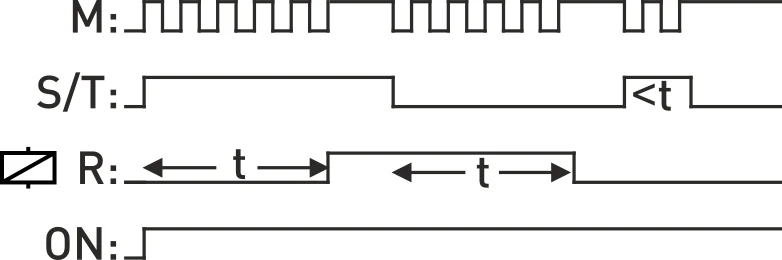

-G- ON Delay And 0FF Delay With Control
After the device is powered on, when the T signal is turned on, the delay starts, the M Led flashes, and the relay outputs after the end, relay Led on and the M Led is on. When the T signal is detected to be turned off, the M Led flashes, and the relay stop outputs after the end, relay Led off and the M Led is on.
If the T signal is turned off during the delay process, the delay will be stopped and the delayed will be cleared.

-H- Pulse Output With Control
After the device is powered on, when the T signal is turned on, relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on.When the T signal is turned on again, relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on.
If the T signal is turned off during the delay, it will not interruption of timing.

-L- Equivalent Timed Flasher (t=ton=toff)
After the device is powered on, relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on. Re-delay, the M Led flashes, and the relay outputs after the end, relay Led is on and the M Led is on.(Infinite loop)
If the T signal is turned off during the delay, it will not interruption of timing.

-N- Equivalent Timed Flasher With Control (t=ton=toff)

After the device is powered on, relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on. Re-delay, the M Led flashes, and the relay outputs after the end, relay Led is on and the M Led is on.(Infinite loop)
If the T signal is turned off during the delay process, the delay will be stopped and the delayed will be cleared and the stop relay output.

Not_1:

Function Selection MenuProgram Selection

Specifications

Operating Voltage(A1-A2)...: 220VAC Or 110VAC
Operating Voltage(A2-A3)....: 24V AC/DC
Operating Frequency.......: 50/60 Hz.
Trigger Voltage(TR).........:24V-240V
Operating Power...............: <6VA
Operating Temperature..: -20°C.....+55°C
Time(t).................................: 0.1sec, - 999hours
Display:.................: LCDx1, LEDx1
Connection Type..............: Terminal connection
Weight................................: Max.<100gr.
Contact....................:5A/250V AC (Resistive Load)
Mounting.................: Assembled on the din rail
Protection Class...........: IP20
Operating Altitude..........: <2000meter
Cable Diameter.................: 2,5mm²
